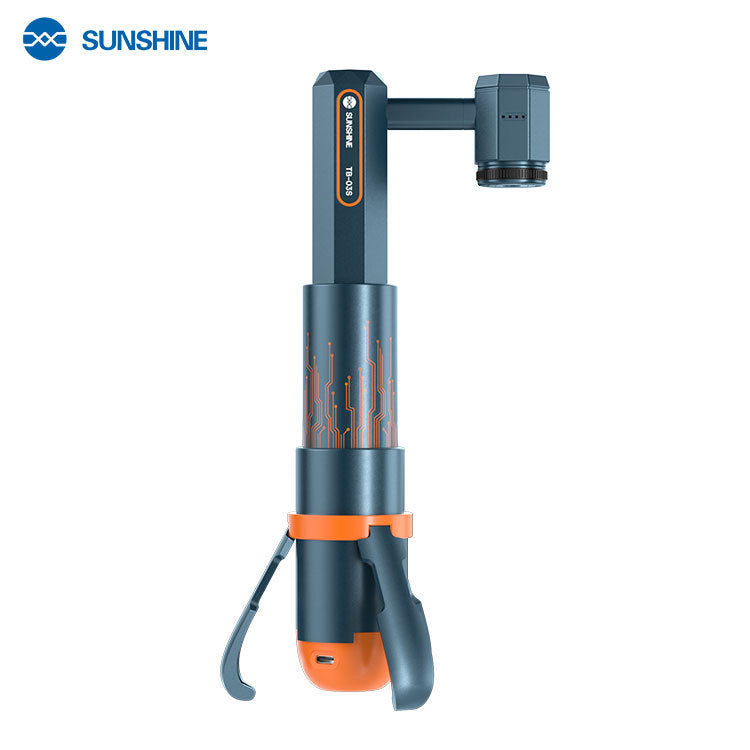

SUNSHINE TB-03S Infrared Rapid Thermal Camera

Discover the ultimate tool for precision diagnostics with the SUNSHINE TB-03S Infrared Rapid Thermal Camera, designed to elevate your repair and inspection efficiency. Perfect for professionals in mobile phone repair, circuit board diagnostics, and beyond, this compact and versatile thermal imaging device delivers high-definition performance in a portable package.
Key Features:

• High-Definition Thermal Imaging: Capture crystal-clear thermal images with a 256x192 resolution, powered by an uncooled Vanadium Oxide (VOx) detector. Quickly locate high-temperature components, PCB short circuits, and leakage faults with pinpoint accuracy.
• Multi-Platform Compatibility: Seamlessly connects to iOS, Android, and Windows devices (laptops/desktops) via a Type-C USB 2.0 interface, ensuring plug-and-play convenience with no installation required. Supports online software upgrades for continuous performance enhancements.
• Detachable Infrared Lens: The innovative clip-on infrared lens is detachable and can be mounted on a microscope using a special bracket, offering flexibility for detailed inspections across various scenarios.
• Adjustable, Foldable Bracket: Features a flexible, telescopic bracket inspired by rocket design principles, allowing height adjustments for optimal positioning. Its compact, foldable design ensures easy storage and portability.
• Versatile Applications: Ideal for mobile phone motherboard repairs, circuit board inspections, industrial equipment diagnostics, house inspections, and visitor monitoring. The one-click quick diagnosis mode simplifies traditional leakage detection, even at milliamp levels.
• Optimized Imaging Algorithm: Equipped with an advanced image algorithm, the TB-03S delivers rapid and precise fault detection, making it a cost-effective choice for professional maintenance tasks.
• Wide Temperature Range: Measures temperatures from -20°C to 550°C with ±5°C/±5% accuracy at a 5-25cm distance, ensuring reliable results in diverse conditions.

Specifications:

• Model: SUNSHINE TB-03S
• Net Weight: ≈265g (Lens ≈38g, Bracket ≈155g)
• Product Size: 116 x 52 x 150mm
• Package Size: 190 x 152 x 75mm
• Wavelength Range: 7.5-13.5μm
• Camera Angle: 25° x 18°
• Display Mode: Infrared Thermal Imaging
• Power Consumption: 2.5W (5V DC input)
• Storage Temperature: -20°C to 60°C
• Operating Range: 3°C to 45°C
• Humidity: Up to 95% relative humidity
• Image Storage Format: JPG

Why Choose the SUNSHINE TB-03S?

Engineered by SUNSHINE, a trusted name in mobile repair since 1998, the TB-03S combines cutting-edge technology with user-friendly design. Its lightweight, portable build and multi-platform support make it an essential tool for technicians and hobbyists alike. Whether you're diagnosing motherboard faults, inspecting industrial equipment, or performing home maintenance, this thermal camera ensures efficiency, precision, and reliability.
